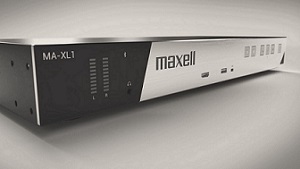

型號 | MA-XL1 | |
機械結構 | Form Factor | Standalone/ Rack Mount |
Weight | 3,050g | |
Dimension of the Product Main Body (The connecting and protruding part are not included) |
430(W) × 208(D) × 60(H)mm | |
視頻輸入 | VGA | 1 |
HDMI | 4 | |
SDI | 3 | |
Resolution | 720p up 1080p (60) | |
視頻輸出 | VGA | 1 |
HDMI | 1 | |
音頻輸入 | HDMI | 4 |
Audio-in (3.5mm) | 1 | |
MIC-in (3.5mm) | Mono | |
Phoenix Plug 1 x 6 | 1 | |
Bluetooth RX | Mono | |
音頻輸出 | HDMI | 1 |
Headset-out (3.5mm) | 1 | |
Audio-out (3.5mm) | 1 | |
Phoenix Plug 1 x 6 | 1 | |
Bluetooth TX | 1 | |
以太網絡 | WAN | 1 |
LAN | 3 | |
USB | Type-A | 4 |
Type-B | 2 | |
控制裝置 | CONTROL1 (RS232-out) | 1 |
CONTROL2 (RS232-in/out) | 1 | |
DIDO Phoenix Plug 1 x 5 | 1 | |
狀態顯示 | Power (GREEN/RED) | 1 |
串流輸入 | RJ-45 / IP | 3 |
Streaming Format | RTSP/ RTP/ RTMP | |
Video Format | H.264 High/ Main/ Baseline | |
Audio Format | AAC-LC | |
Max. Channels | 3 | |
串流輸出 | Streaming Format | RTMP/ RTP |
Video Format | H.264 High/ Main/ Baseline | |
Audio Format | AAC-LC | |
Supported Resolution | 320 × 240 to 1080p (30) | |
Supported Bitrate | 300kbps up to 4Mbps | |
Max. Channels | 2 | |
Live Streaming × 1 | ||
Conference × 1 | ||
存儲 | Internal HDD Capacity | 1TB |
Storage File Format | MP4 | |
External Storage | Yes via USB Type A | |
Export Files | Mixed × 1 | |
Independent × 3 | ||
電源 | DC 24V/ 2.5A | |
重新啟動 | Reset Button | 1 |
附件 | Power adaptor, Power cord, Bluetooth Antenna, Balance line, Connector (2 units), DIDO connector, USB number keyboard stickers, Rack mount bracket (1 pair) + M4 × 6mm screw (6 pcs), User's manual (concise), URL sheet |
以上尺寸為主機體尺寸,接駁位及凸出部分不計算在內。
